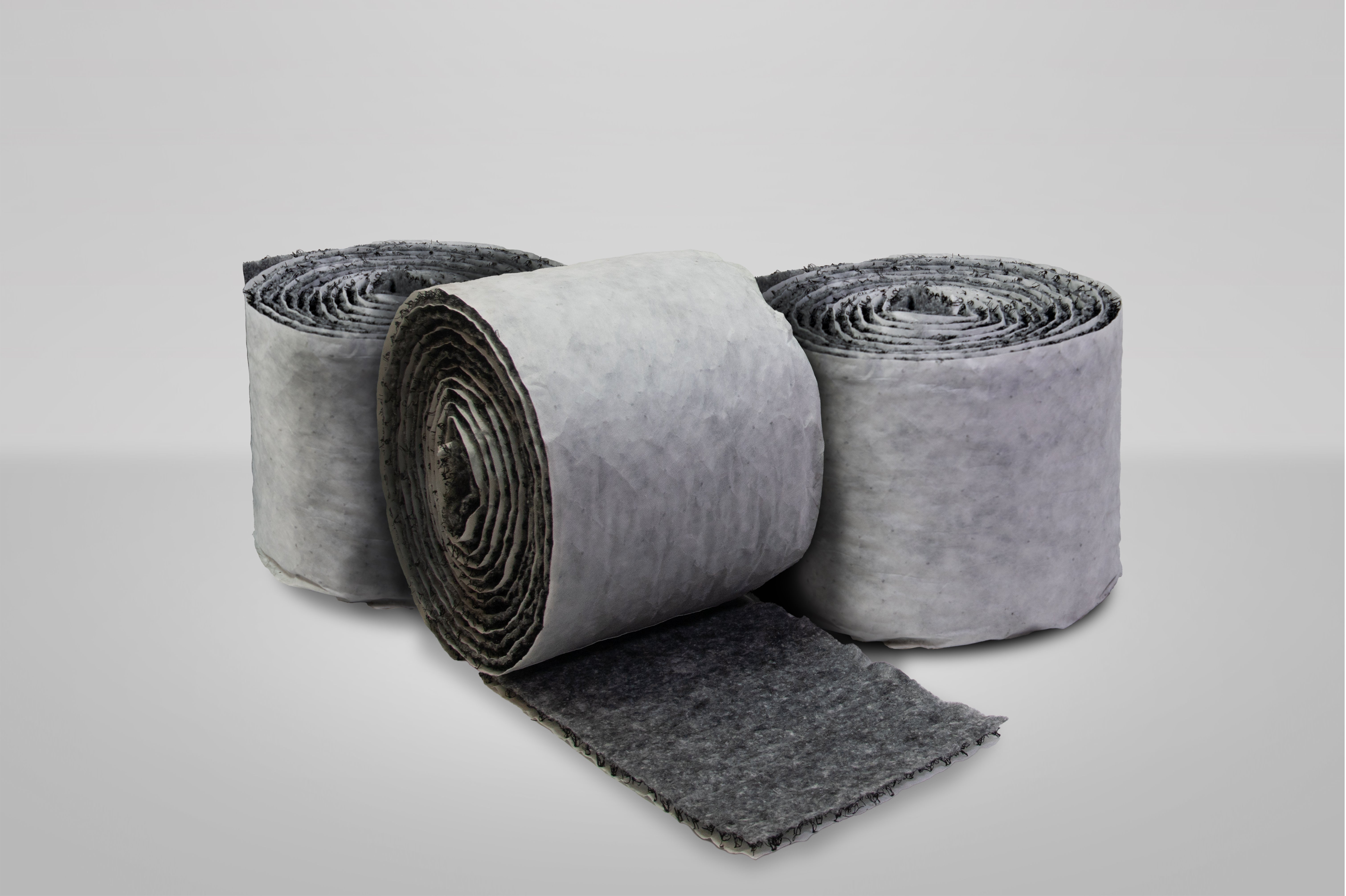

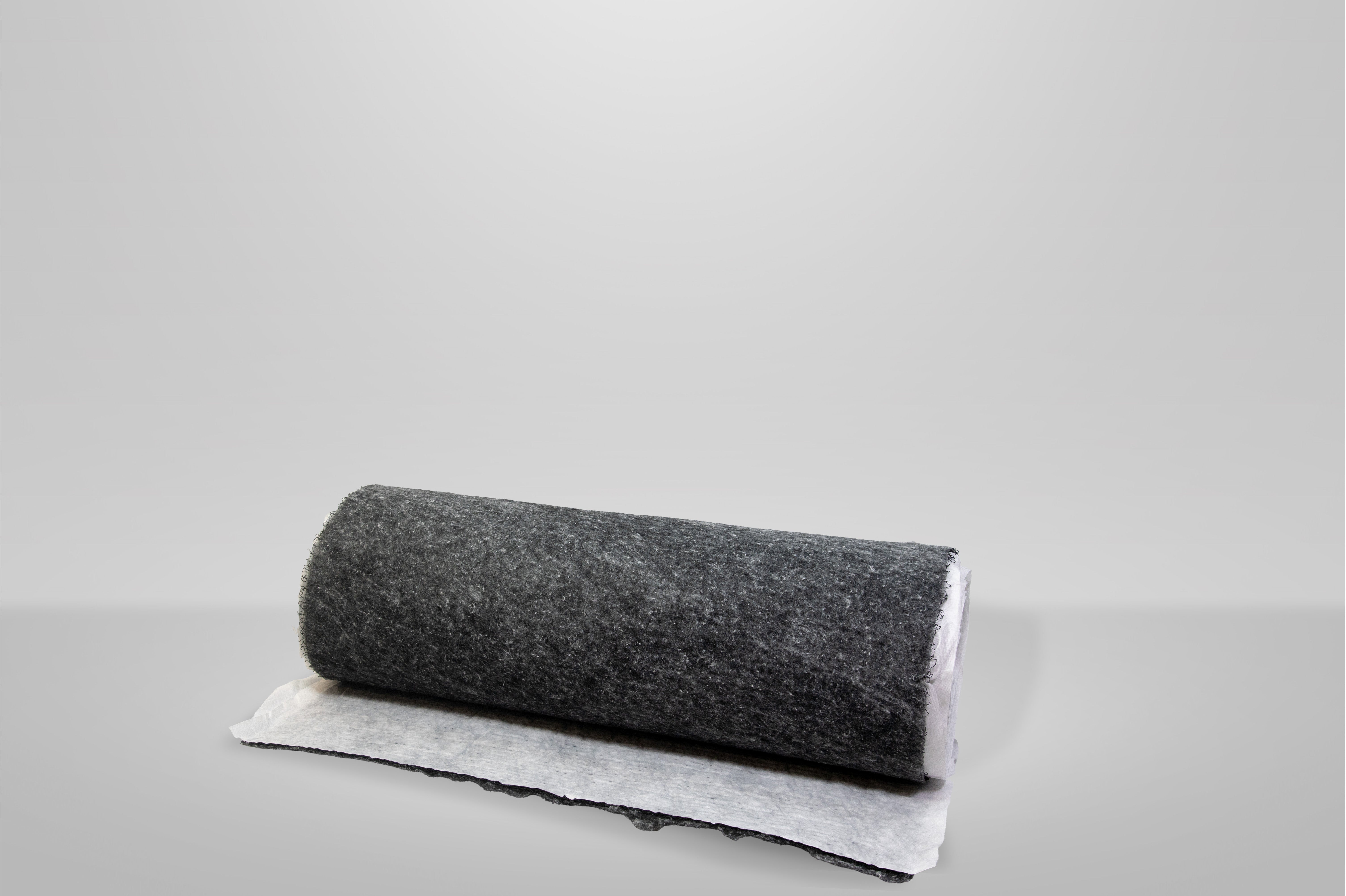

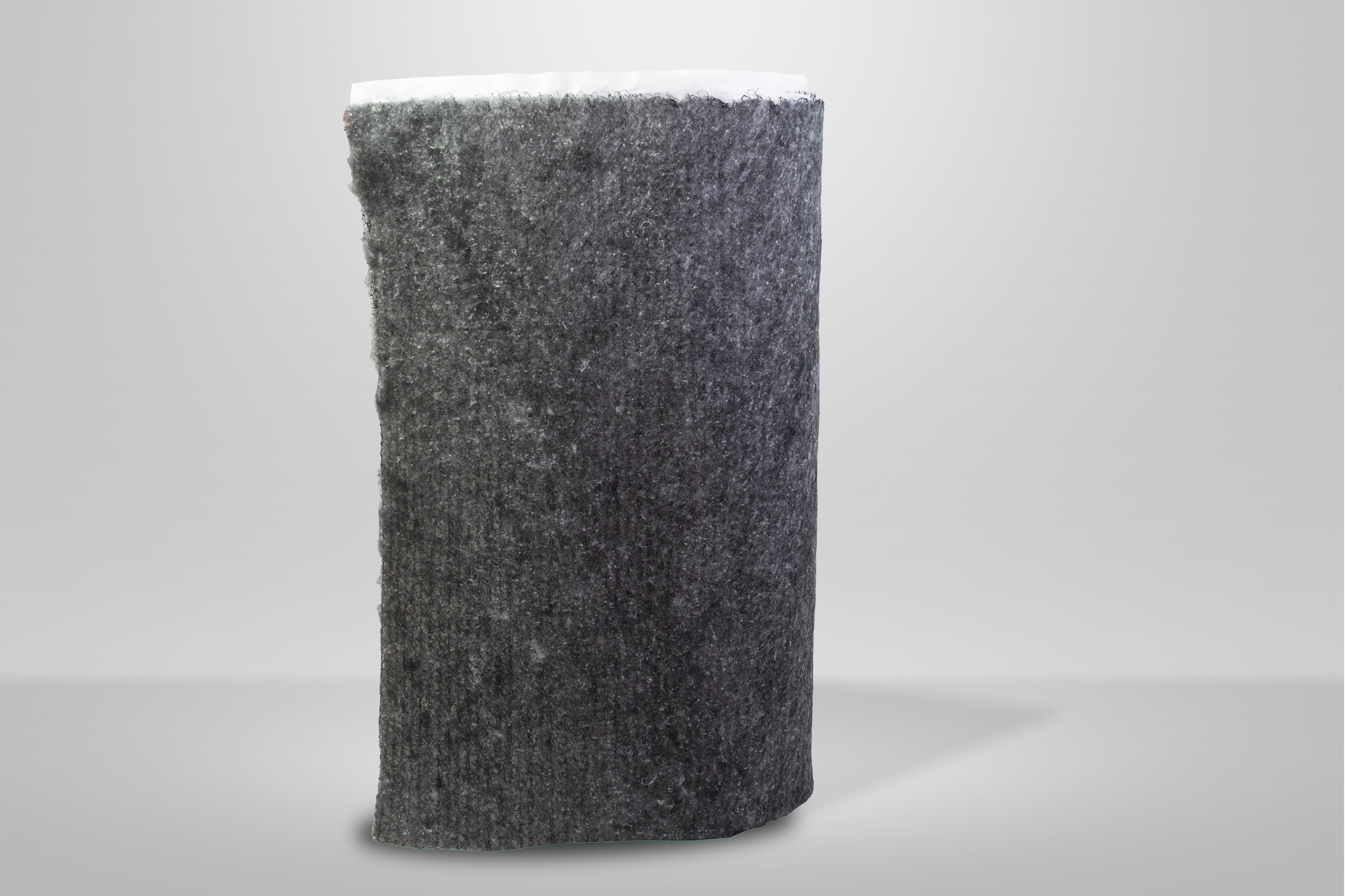

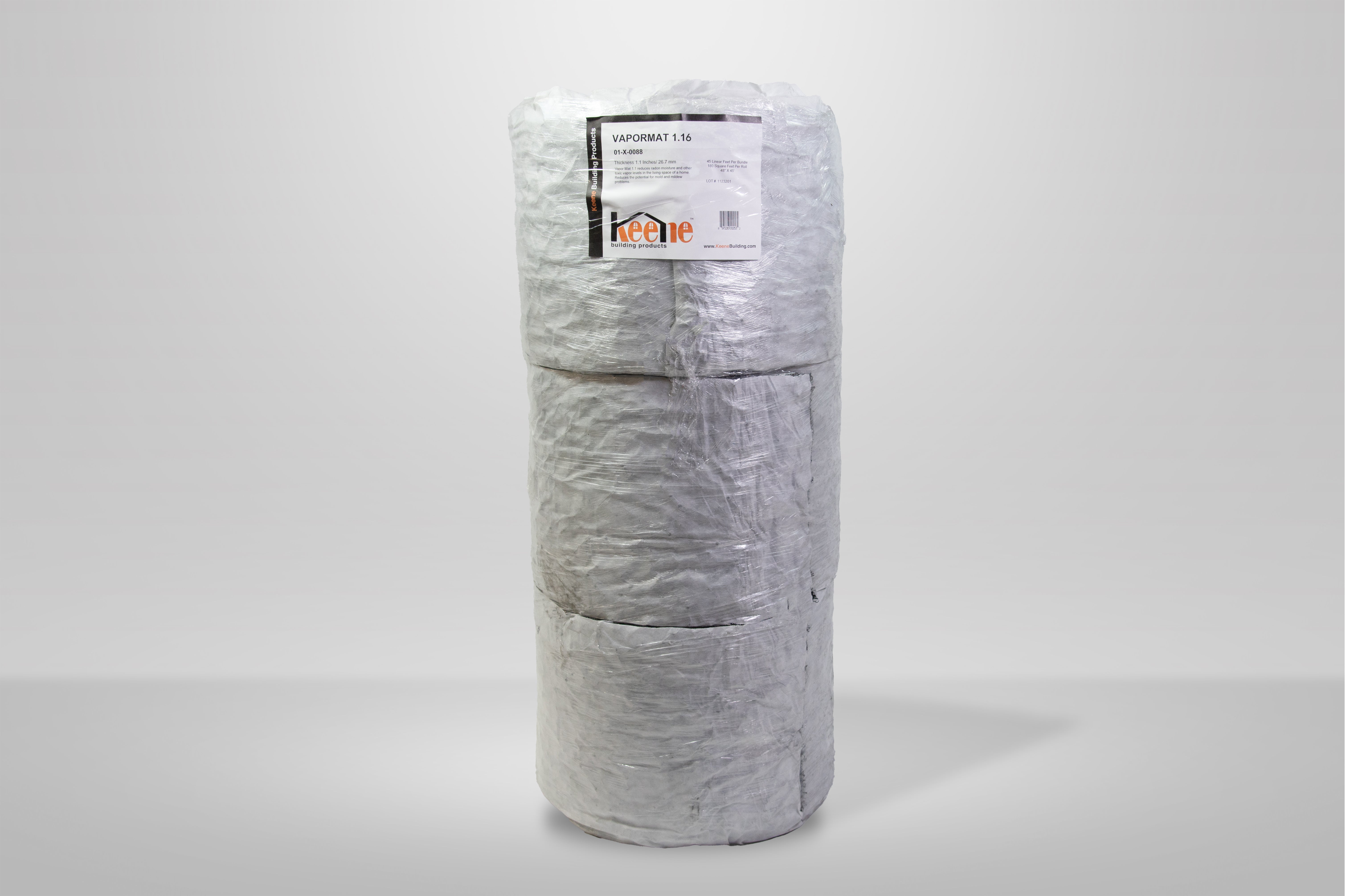

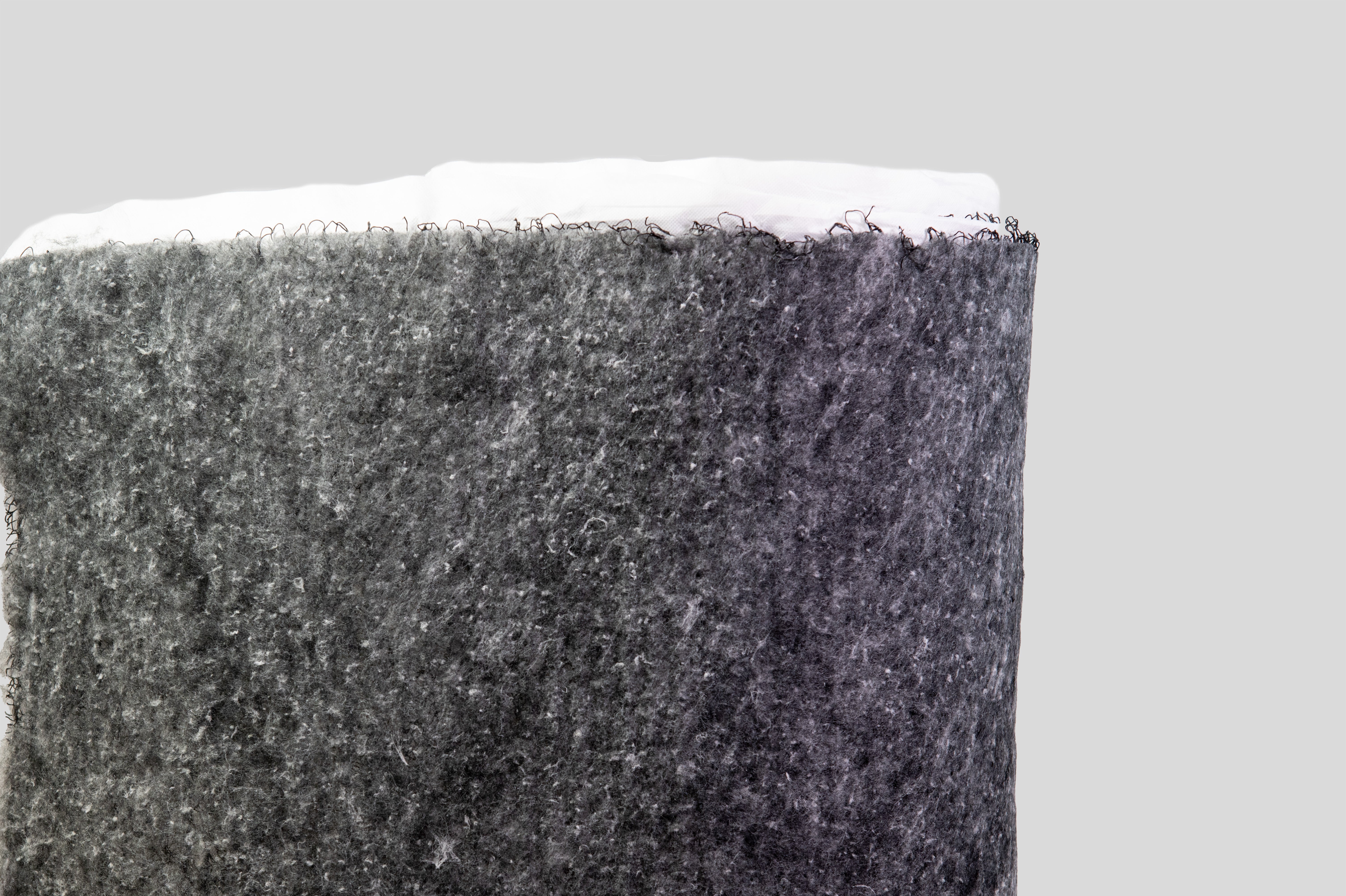

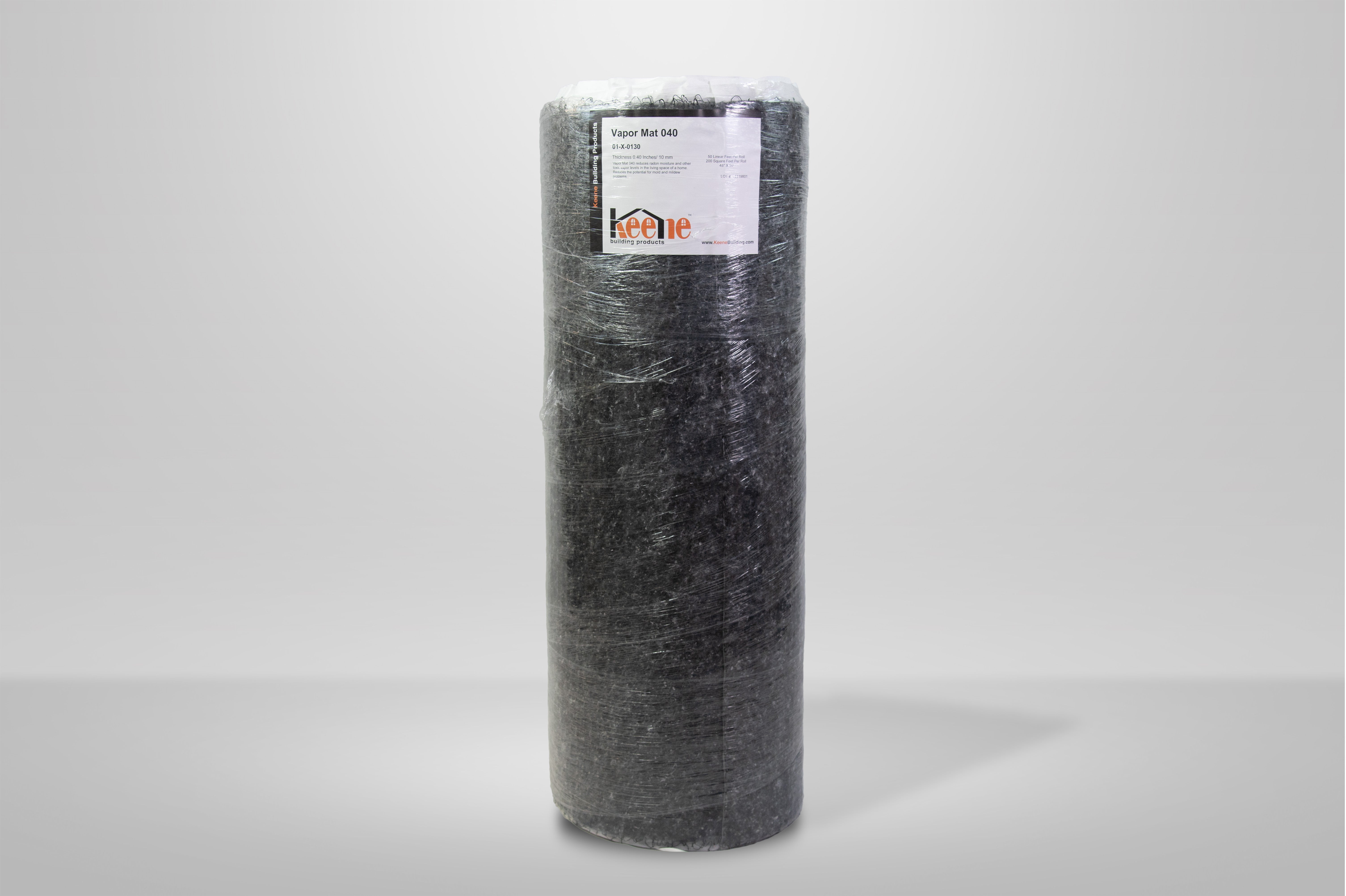

VaporMat™ is highly adaptable venting system used to collect radon, moisture and other toxic vapors coming from the soil around a house and direct them toward an exhaust stack, which leads them safely out through the roof.

It works effectively as part of a passive soil depressurization system (PSD) or a fan can be added to the exhaust stack for an active soil depressurization system (ASD).

Applications:

• Under slab
• Under membrane
• In conjunction with gravel sand or soil
• Where a pressure field is required across obstacles or distances

Features and Benefits:

• Reduces Radon, moisture and other toxic vapor levels in the living space of a home
• Reduces the potential for mold and mildew problems
• Maintains air flow communication across grade beams, downturns, footers and distant corners
• Reduces the need for an exhaust fan or basement dehumidifier reducing lifetime energy costs
• Installation is easy saving time and money over other options
• Complies with building codes: IRC Appendix F, RRNC 2.0 and ASTM E-1465
• Complies with ANSI/AARST Standard CC-1000-2018
• 15.2 sq/in of cross-sectional area
• Manufactured in USA

Documents:

• Keene Building Products Safety Data Sheet
• VaporMat™ 040 Installation Instructions
• VaporMat™ 040 Technical Data Sheet
• VaporMat™ 1-16 Installation Instructions
• VaporMat™ 1-16 Technical Data Sheet

• VaporMat™ 040: 0.5 In / 12.7 mm | Part #: 01-X-0130
• VaporMat™ 1-16: 1.1 in / 26.7 mm | Part #: 01-X-0088
